Mitsubishi Electric CN105 WiFi Thermostat — AE-5507
AE-5507 is an aftermarket smart room controller for selected Mitsubishi Electric PEFY, PEY and EZ indoor units using the CN105 interface.
Confirm the exact Mitsubishi Electric indoor-unit model and CN105 connector before ordering.
Factory supply · B2B
Catalogues, samples & wholesale quotations
Standard MOQ: 60 units/sets
Models, protocols and software versions may be counted separately. Pricing and production lead time depend on the confirmed configuration and quantity.
Sample options
After requirements and payment are confirmed: stock samples approximately 3 working days; functional/protocol configuration 15–20 working days; logo, manual or packaging adjustments approximately 10 working days.
Confirm your application before ordering
Send the complete indoor-unit model, communication connector or wiring photos, required protocol and control functions. Compatibility depends on the exact unit and ordered configuration.
AE-5507 is the primary ACMELEC thermostat route for supported Mitsubishi Electric CN105 indoor units.
Confirmed indoor-unit series
- PEFY Series: P20, 25, 32, 40, 50, 63, 71, 80, 100, 125 and 140VMA
- PEY Series: P18/24/30/36/42/45/48JAG and P60GAG
- EZ Series: M25/35/50/60/71DA(L)
Model suffixes and regional versions can differ. Send the full indoor-unit nameplate before order confirmation.
What to confirm before ordering
CN105 presence alone does not guarantee compatibility across every regional model or control-board revision. Send the complete indoor-unit model and a clear photo of the CN105 connector before sample or bulk order.
Project and OEM options
- Brand logo and packaging customization
- WiFi, Zigbee, Modbus, RF433 or 0-10V configurations where applicable
- Project matching for hotels, apartments, offices and HVAC distributors
Compatible model route
Mitsubishi Electric compatible AE VRF thermostat models
These are shared AE model pages. For Mitsubishi Electric projects, the product body stays the same, while the wiring diagram, communication firmware and compatibility confirmation are handled as the brand-specific part.
VRF Thermostat
AE-669-VRF LCD Smart VRF Thermostat
AE-669-VRF smart thermostat for VRF air conditioner control. Black LCD curved-screen panel option for VRF air conditioner smart control. Brand-specific wiring and compatibility are confirmed on each VRF brand page.
- Model
- AE-669-VRF
- Protocol
- WiFi, Zigbee, Tuya
VRF Thermostat
AE-740-VRF TFT Smart VRF Thermostat
AE-740-VRF smart thermostat for VRF air conditioner control. Black TFT color screen panel option for VRF smart HVAC projects. Brand-specific wiring and compatibility are confirmed on each VRF brand page.
- Model
- AE-740-VRF
- Protocol
- WiFi, Zigbee, Tuya
VRF Thermostat
AE-940-VRF Smart VRF Thermostat
AE-940-VRF smart thermostat for VRF air conditioner control. TFT color LCD curved-screen option for VRF air conditioner smart control. Brand-specific wiring and compatibility are confirmed on each VRF brand page.
- Model
- AE-940-VRF
- Protocol
- WiFi, Zigbee, Tuya
VRF Thermostat
AE-5502-VRF Smart VRF Thermostat
AE-5502-VRF smart thermostat for VRF air conditioner control. TFT color LCD panel option for VRF air conditioner smart control. Brand-specific wiring and compatibility are confirmed on each VRF brand page.
- Model
- AE-5502-VRF
- Protocol
- WiFi, Zigbee, Tuya
VRF Thermostat
AE-5503-DB-VRF LCD Smart VRF Thermostat
AE-5503-DB-VRF smart thermostat for VRF air conditioner control. White LCD panel option for VRF air conditioner smart control. Brand-specific wiring and compatibility are confirmed on each VRF brand page.
- Model
- AE-5503-DB-VRF
- Protocol
- WiFi, Zigbee, Tuya
VRF Thermostat
AE-5503-VRF WiFi Smart VRF Thermostat
AE-5503-VRF WiFi smart thermostat for VRF air conditioner systems with app control, voice assistant support and OEM project supply. Brand-specific wiring and firmware are confirmed by project.
- Model
- AE-5503-VRF
- Protocol
- WiFi, Tuya
VRF Thermostat
AE-5507-VRF WiFi Zigbee Smart VRF Thermostat
AE-5507-VRF smart thermostat for VRF air conditioner systems with WiFi, Zigbee, Tuya app and voice assistant control. Brand-specific wiring and firmware are confirmed by project.
- Model
- AE-5507-VRF
- Protocol
- WiFi, Zigbee, Tuya
VRF Thermostat
AE-5509-VRF Smart VRF Thermostat
AE-5509-VRF smart thermostat for VRF air conditioner control. Straight-screen TFT color LCD option for VRF control projects. Brand-specific wiring and compatibility are confirmed on each VRF brand page.
- Model
- AE-5509-VRF
- Protocol
- WiFi, Zigbee, Tuya
Technical summary
AE-5507 CN105 controller details
| Controller model | AE-5507-VRF |
|---|---|
| Target brand | Mitsubishi Electric |
| Indoor-unit interface | CN105 |

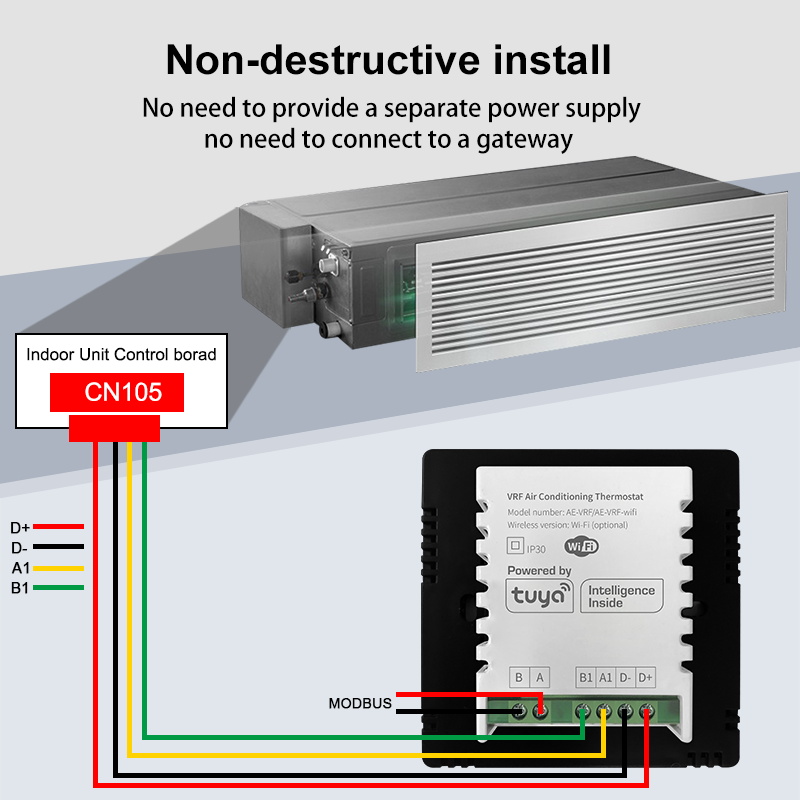

| Connection | D+, D−, A1 and B1 as shown in the wiring diagram |
| Listed indoor-unit families | Selected PEFY, PEY and EZ series |
| Smart options | WiFi / Tuya; configuration confirmed by project |
| Installation route | Direct connection to the indoor-unit control board; no separate gateway |
| Required confirmation | Full indoor-unit model and CN105/control-board photo |
Why choose AE-5507?
- Direct CN105 connection for supported Mitsubishi Electric indoor units
- No separate smart gateway required for the listed installation route
- Wall-mounted thermostat interface with optional app control
- OEM logo, panel, packaging and documentation support
Verified product answers
Mitsubishi Electric CN105 questions
Does AE-5507 work with every Mitsubishi Electric air conditioner?
No. It is intended for selected indoor units with a compatible CN105 interface. Confirm the full indoor-unit model before ordering.
Which Mitsubishi Electric series are listed?
Selected PEFY, PEY and EZ series models are listed. Regional suffixes and control-board revisions must still be checked.
What is needed for compatibility confirmation?
Send the full indoor-unit model, a CN105 or control-board photo, existing controller details and project quantity.
Brand-specific confirmation
Mitsubishi Electric wiring and compatibility
Use this page to confirm whether AE-5507 matches the Mitsubishi Electric indoor unit, CN105 connector and project requirements before ordering.
What changes by brand
- Wiring diagram and terminal definition
- Firmware or communication matching
- Indoor unit compatibility confirmation
- Project quotation notes and sample recommendation
