VRF Thermostat

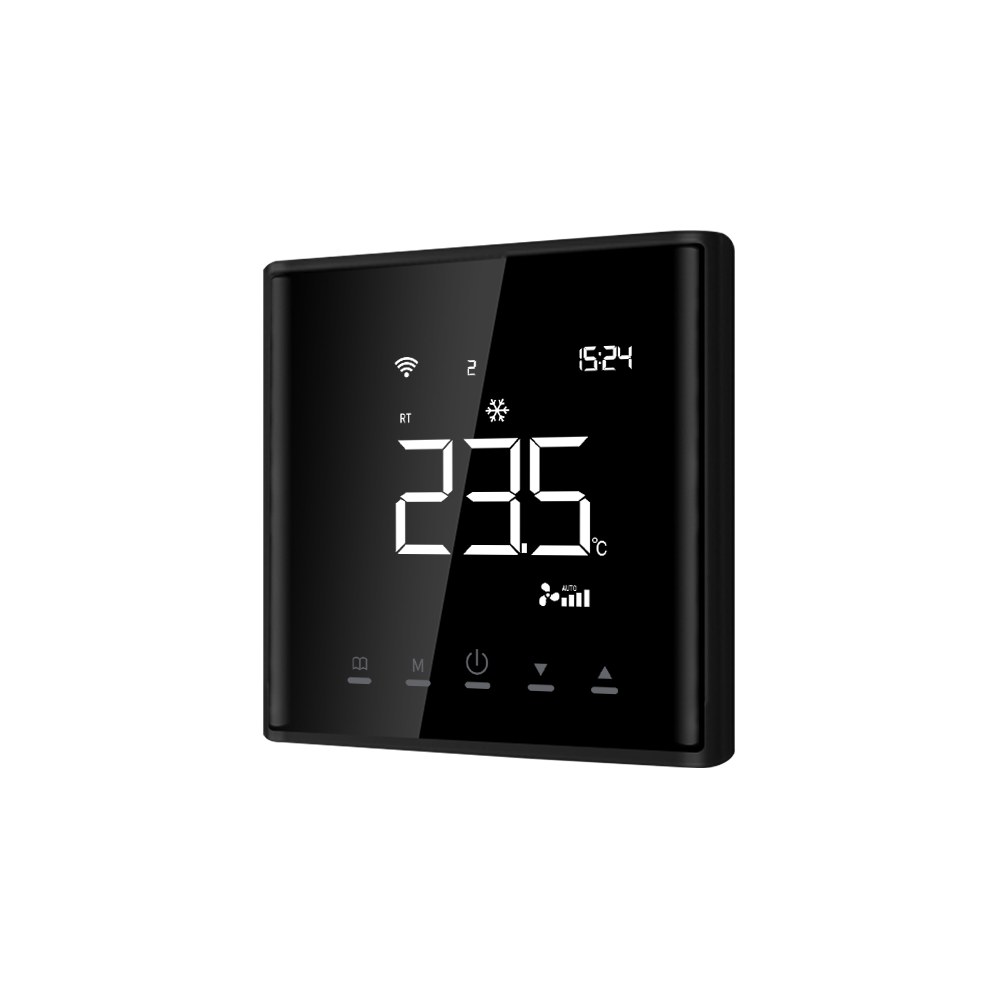

AE-669 Smart VRF Thermostat for Fujitsu General CN14 Systems
CN14 configuration and document checklist
AE-669 is the primary ACMELEC thermostat route for supported Fujitsu General and O General indoor units with the CN14 control-board interface.
Best forBlack LCD VRF thermostat projects that need a simple, cost-effective smart panel route.
Panel styleBlack LCD curved-screen panel with clean numeric display, suitable for practical VRF control upgrades.
Control routeFujitsu General / O General CN14 connection route; confirm the exact indoor unit, wiring and firmware before ordering.
Before quotationGood for customers who want a simpler LCD display instead of a full color TFT screen.
- Model
- AE-669-VRF
- Application
- VRF air conditioner control
- Protocols
- WiFi, Zigbee, Tuya
- Interface route to confirm
- Fujitsu General / O General CN14 route documented on this page; confirm full indoor-unit model and matched firmware
- Product family
- VRF Thermostat
Configuration and documentation
AE-669 CN14 configuration checklist
The page links an existing AE-669 reference PDF, but a model-matched installation manual for the ordered Fujitsu General CN14 configuration is not confirmed here. Request the matching CN14 terminal diagram, power requirements and firmware confirmation; do not use the file name or panel appearance as evidence of applicability.
| Interface route | Fujitsu General / O General CN14 route documented on this page; confirm full indoor-unit model and matched firmware |
|---|---|
| Before quotation | Full indoor-unit model and suffix, connector and original controller photos, required operating functions, wireless version and app or hub requirements. |
| Validation record | Confirm the delivered hardware and firmware and test the required functions on the target indoor unit before bulk ordering. Keep a record of the delivered firmware and the controls checked on that unit. |
CN14 connection reference · Model questions · Specifications and reference file
Factory supply · B2B
Catalogues, samples & wholesale quotations
Standard MOQ: 60 units/sets
Models, protocols and software versions may be counted separately. Pricing and production lead time depend on the confirmed configuration and quantity.
Sample options
After requirements and payment are confirmed: stock samples approximately 3 working days; functional/protocol configuration 15–20 working days; logo, manual or packaging adjustments approximately 10 working days.
Confirm your application before ordering
Send the complete indoor-unit model, communication connector or wiring photos, required protocol and control functions. Compatibility depends on the exact unit and ordered configuration.
Model-specific information
AE-669 selection notes for VRF projects
Select the AE-669 panel together with the Fujitsu General / O General indoor-unit model, CN14 interface and ordered firmware.
Recommended use
Black LCD VRF thermostat projects that need a simple, cost-effective smart panel route.
Appearance and panel
Black LCD curved-screen panel with clean numeric display, suitable for practical VRF control upgrades.
Compatibility logic
Fujitsu General / O General CN14 connection route; confirm the exact indoor unit, wiring and firmware before ordering.
Quotation preparation
Good for customers who want a simpler LCD display instead of a full color TFT screen.
Model and interface details
AE-669 CN14 specifications and document scope
The Fujitsu General / O General CN14 connection reference below is the route described on this page. Match the exact indoor-unit interface, rear-terminal markings and firmware; shared panel appearance does not establish interchangeable wiring or functions.
Product parameters
| Temperature sensing element | Thermistor |
|---|---|
| Control accuracy | ±1°C |
| Installation hole spacing | 60mm (standard) |
| Work environment | 0-45°C |
| Shell material | PC+ABS flame retardant |
| Temperature range | 16-32°C (adjustable) |
Model information
| Shared model | AE-669-VRF |
|---|---|
| Display / panel | Black LCD curved-screen panel |
| Product form | Wall-mounted smart VRF thermostat |
| Smart options | WiFi, Zigbee, Tuya |
| Documented interface route | Fujitsu General / O General CN14 route documented on this page; confirm full indoor-unit model and matched firmware |
| Brand-specific part | Wiring diagram, firmware matching and indoor unit compatibility |
| OEM/ODM scope | Logo, panel, firmware, packaging and manual language by project |
Documents and decision notes
- A practical LCD route for customers who do not need a full color-screen UI.
- Confirm the Fujitsu General / O General indoor-unit model, CN14 connector and matched firmware before selecting this route.
- Suitable for cost-sensitive smart VRF control and OEM thermostat programs.
Display and operation
- Room temperature and set temperature display
- Cooling, heating, ventilation and dehumidification mode indication
- Wind speed display and fan speed key
- Week, time, timing and child lock display
- WiFi or Zigbee indicator according to selected configuration
- Mode, wind speed, up, down and ON/OFF touch keys
Professional detail
How to evaluate this VRF thermostat model
AE-669 is the black LCD curved-screen thermostat route presented here for supported Fujitsu General / O General CN14 indoor-unit configurations. Confirm the complete indoor-unit model, connector, existing controller wiring and matched firmware before ordering.
Product role
Fujitsu General / O General CN14 thermostat route requiring exact indoor-unit and firmware matching.
Compatibility
Confirm indoor unit model, interface generation and current controller wiring before sample or bulk order.
Function route
Specify the required wireless protocol and confirm Tuya app or gateway requirements for the ordered version.
Buyer action
Choose the AE appearance/model first, then confirm the AC brand wiring and firmware route.
Product overview
AE-669-VRF product detail
AE-669 is the black LCD curved-screen thermostat route presented here for supported Fujitsu General / O General CN14 indoor-unit configurations. Confirm the complete indoor-unit model, connector, existing controller wiring and matched firmware before ordering.
This model belongs to the VRF Thermostat family. Confirm the exact HVAC model, wiring interface and required control configuration before requesting a quotation.
Application details
Where this model is used
- VRF or multi-split air conditioner smart control projects
- Apartments, offices, hotels and commercial HVAC retrofit projects
- Smart home channels that need app or voice assistant control
- OEM thermostat programs for regional HVAC brands and importers
Recommended inquiry details
To speed up quotation, include HVAC brand/model, protocol requirement, order quantity, target market, logo needs and certification requirements.
A model-matched manual is not confirmed here. Request the manual and wiring diagram for the exact ordered version before installation.
Function details
Control functions and buyer value
Confirm which control functions are included in the ordered configuration. Do not assume that every protocol or feature is available on every version.
Function 1
Confirm the exact indoor-unit model, interface and matched controller configuration
Function 2
WiFi, Zigbee, Tuya control options according to the selected configuration
Function 3
Remote app control and smart scene integration where supported
Function 4
OEM panel, logo and documentation support for HVAC customers
Technical checklist
Key points to confirm before order
Exact configuration depends on project requirement, so ACMELEC confirms the real HVAC system before quotation and sample preparation.
- Confirm the exact AC brand and indoor unit model before sample or bulk order.
- VRF control compatibility may depend on indoor unit interface, generation and wiring method.
- For brand projects, provide target market and required smart platform before quotation.
- For hotels or apartments, confirm quantity, room control logic and installation schedule.
Specification summary
Model information
| Model | AE-669-VRF |
|---|---|
| Product family | VRF Thermostat |
| Application | VRF air conditioner control |
| Protocol / function options | WiFi, Zigbee, Tuya |
| System matching required | Fujitsu General / O General CN14 route documented on this page; confirm full indoor-unit model and matched firmware |
| OEM/ODM | Logo, panel, firmware, packaging and manual support available by project |
| Documents | English manual or technical file can be supplied when available |
| Buyer type | HVAC distributors, brand owners, system integrators and project buyers |
| Brand and interface scope | Fujitsu General / O General CN14 route documented on this page; confirm full indoor-unit model and matched firmware |
| Control direction | VRF / multi-split indoor unit smart control |
| Smart function options | WiFi, Zigbee, Tuya |
| Typical project | Hotel rooms, apartments, offices and commercial HVAC retrofit |
| Buyer confirmation | Indoor unit model, wiring/interface, protocol and target quantity |
OEM/ODM options
- Logo printing and front panel appearance direction
- Packaging, label and English manual support
- Firmware or function configuration discussion by project
- Sample verification before bulk order
Fujitsu General CN14 connection reference

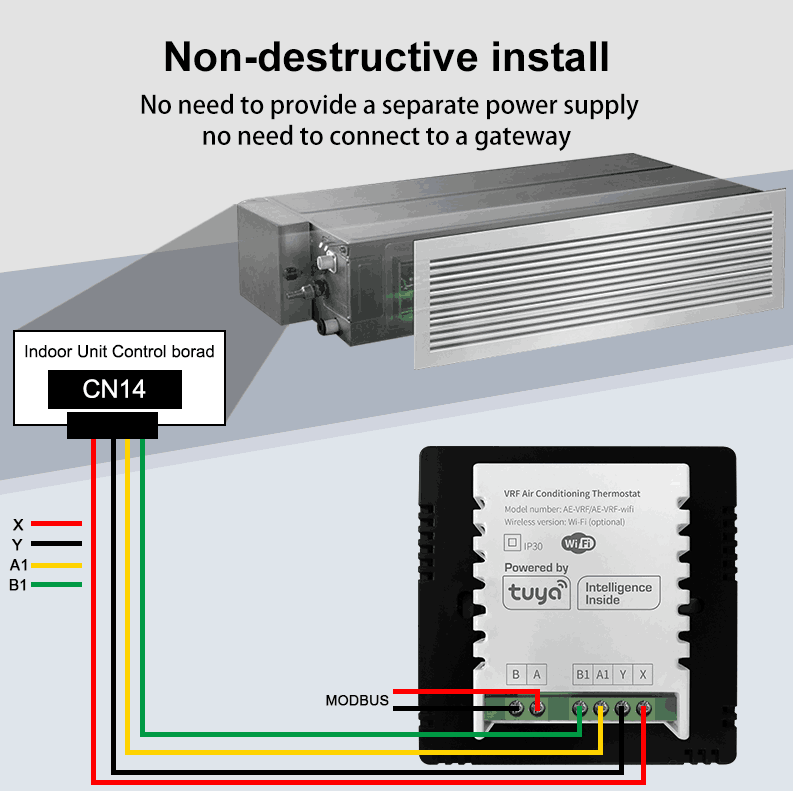

AE-669 CN14 Wiring Diagram
The illustrated route uses the indoor-unit control board without a separate gateway or power supply. Confirm the exact indoor-unit model and connector before ordering.
Documented interface answers
AE-669 Fujitsu General questions
What interface does AE-669 use for Fujitsu General projects?
The illustrated route uses the indoor-unit CN14 connector with X, Y, A1 and B1 terminals. Confirm the complete indoor-unit model, connector and ordered firmware before using this reference.
Does AE-669 support every Fujitsu General indoor unit?
No. Compatibility depends on the exact indoor-unit model and control-board interface. Confirm both before ordering.
Does the AE-669 CN14 route need a separate gateway?
The illustrated CN14 route connects to the indoor-unit control board without a separate gateway or power supply. Confirm this arrangement for the exact indoor-unit model and ordered configuration; it is not a claim about every Fujitsu General system.
Explore the range
Related products
VRF Thermostat

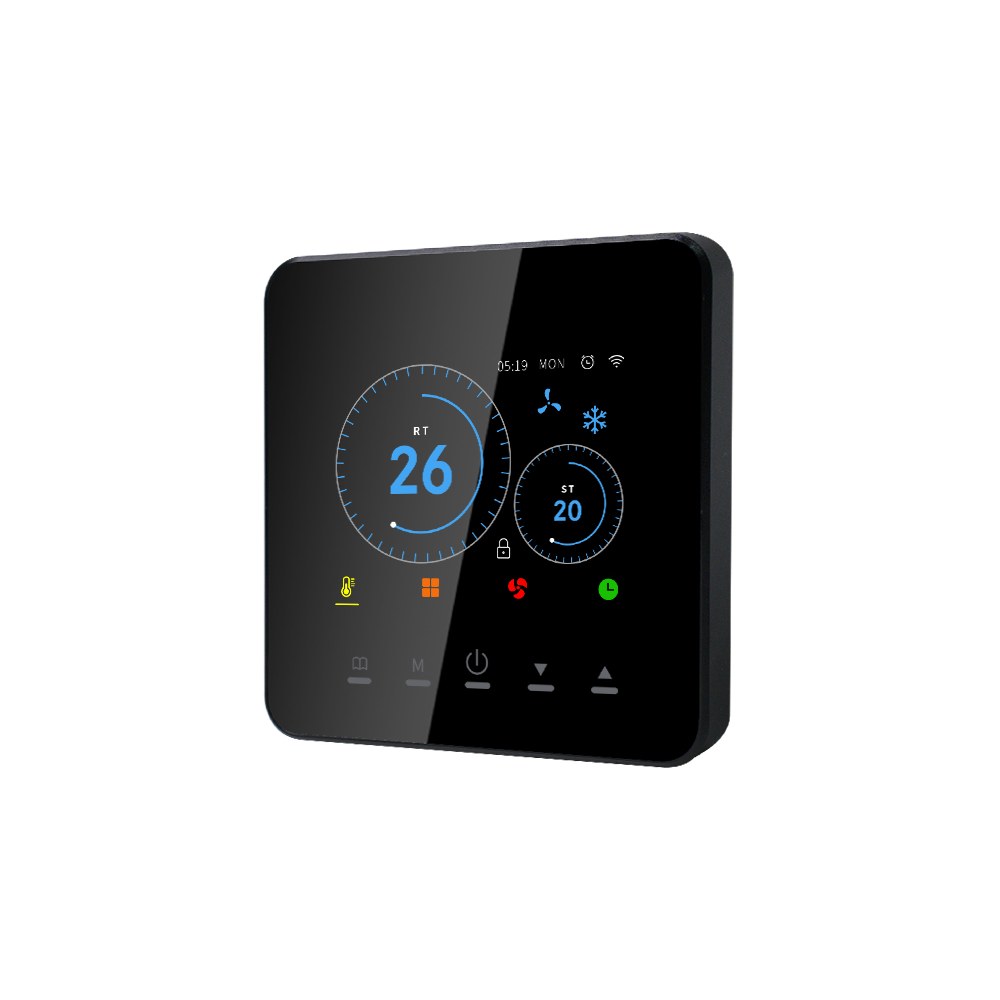

AE-5507-VRF WiFi Zigbee Smart VRF Thermostat
AE-5507-VRF smart thermostat for VRF air conditioner systems with WiFi, Zigbee, Tuya app and voice assistant control. Brand-specific wiring and firmware are confirmed by project.
- Model
- AE-5507-VRF
- Protocol
- WiFi, Zigbee, Tuya
VRF Thermostat

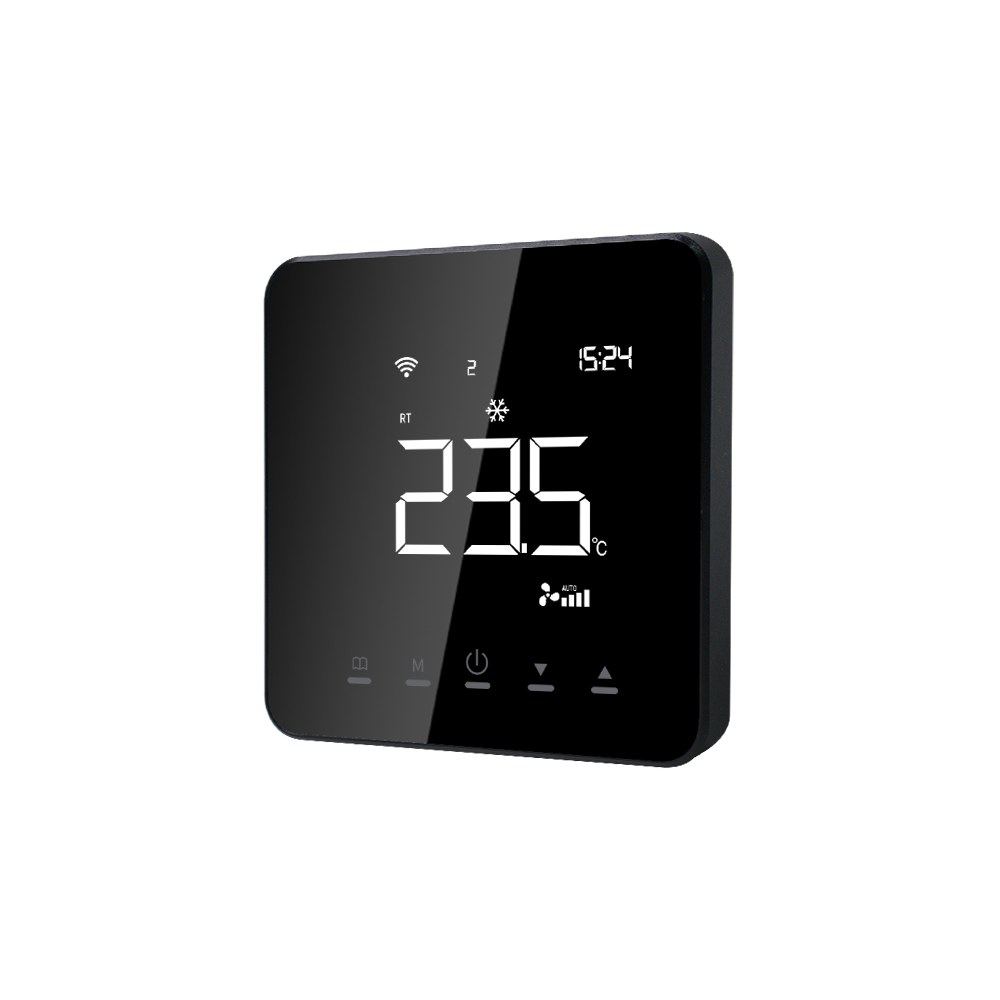

AE-5503-VRF WiFi Smart VRF Thermostat
AE-5503-VRF WiFi smart thermostat for VRF air conditioner systems with app control, voice assistant support and OEM project supply. Brand-specific wiring and firmware are confirmed by project.
- Model
- AE-5503-VRF
- Protocol
- WiFi, Tuya
VRF Thermostat

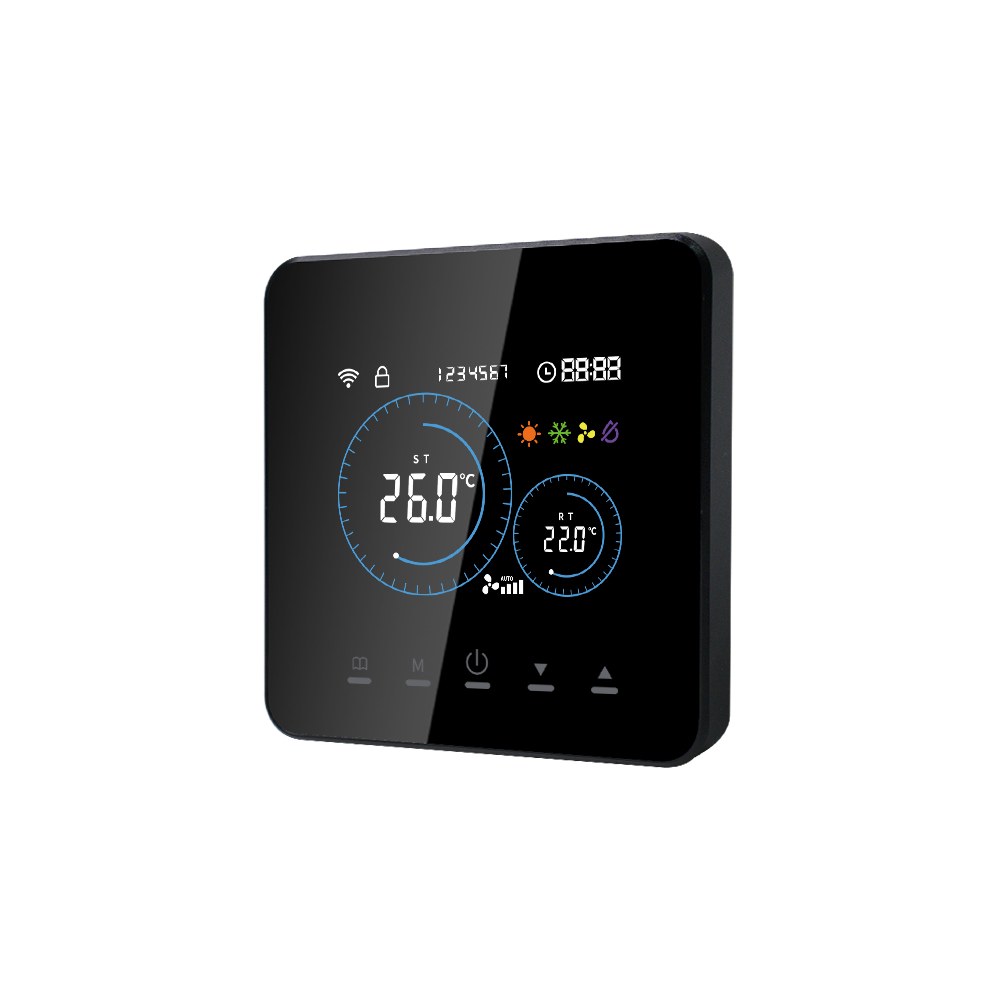

AE-5502-VRF Smart VRF Thermostat
