Floor Heating Thermostat

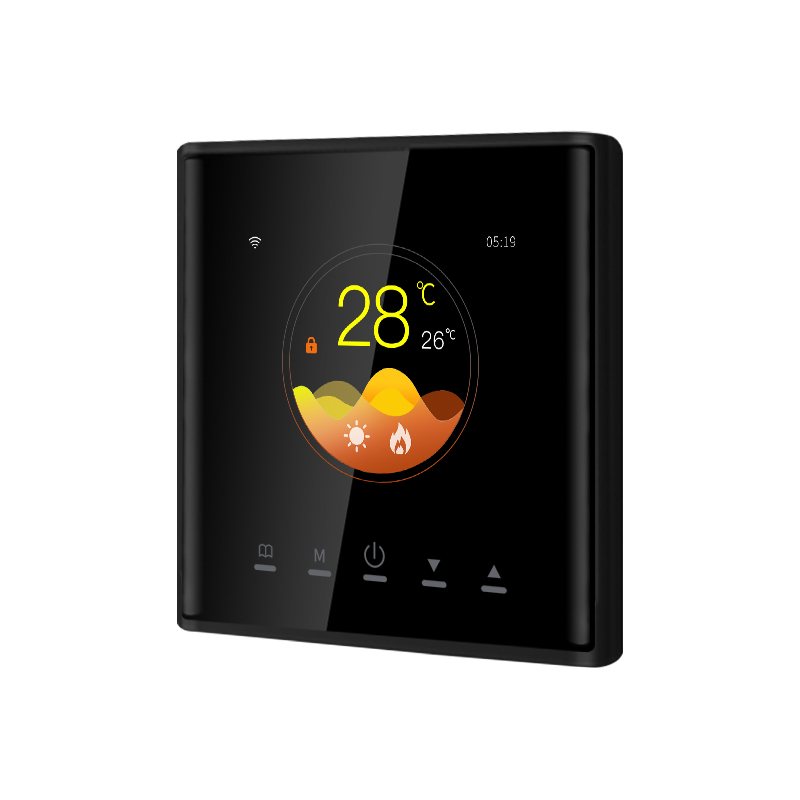

AE-940D Color WiFi Floor Heating Thermostat
Output and supply version summary
Specifications & manual · Heating questions · Compare heating controls
Color-display thermostat for electric floor heating, hydronic heating or wall-mounted boiler control. Choose 16A electric load, 3A valve output or dry contact, with room/floor sensing and optional Smart Life WiFi.
- Model
- AE-940D
- Application
- Electric and hydronic floor heating
- Heating outputs
- 16A / 3A / dry contact
- Compatible brand
- ACMELEC
- Product family
- Floor Heating Thermostat
These diagrams show separate output configurations, not interchangeable terminals on one unit. Match the supplied terminal label, voltage and load rating before installation. The illustrated wide-voltage hardware and the 220 ±10 VAC manual version have different ratings; use the specification supplied with your ordered version.
Product selection summary
AE-940D outputs, supply and timing
| Heating output | 16 A electric-heating, 3 A hydronic valve or compatible boiler dry-contact configuration. These are separate ordered versions, not interchangeable terminals on one product. |
|---|---|
| Supply version | The manual lists 220±10 VAC; gallery images also show other supply hardware. Match the supplied terminal label, voltage and wiring diagram. |
| Sensors and timing | Room, floor or combined sensing. The local panel is described with a single timed on/off function; this does not establish local weekly programming. |
Specifications and manual · Supply and timer questions · Compare heating controls
Factory supply · B2B
Catalogues, samples & wholesale quotations
Standard MOQ: 60 units/sets
Models, protocols and software versions may be counted separately. Pricing and production lead time depend on the confirmed configuration and quantity.
Sample options
After requirements and payment are confirmed: stock samples approximately 3 working days; functional/protocol configuration 15–20 working days; logo, manual or packaging adjustments approximately 10 working days.
Confirm your application before ordering
Specify electric or water floor heating, load/current or valve specifications, supply voltage and room/floor sensor requirements. Outputs and functions depend on the ordered model.
Specifications and installation manual
AE-940D heating outputs, sensors and manual
Match the electric, hydronic or other ordered heating output to the installation. Review the room/floor sensor setting and the manual with the supplied product label before choosing a sample.
Product parameters
| Temperature sensor | Thermistor; internal, external or combined mode |
|---|---|
| Control accuracy | ±1°C |
| Setpoint range | 5-60°C, adjustable |
| Power supply | 220±10 VAC in the manual; match the supply label and wiring diagram for the ordered hardware version |
| Electric heating output | 16A |
| Water heating output | 3A open/close valve control |
| Boiler output | Dry contact version |
| Floor protection | Adjustable floor-temperature warning limit |
| WiFi option | Smart Life app and supported voice control |
| Installation | 60 mm standard mounting-hole spacing |
Model and selection information
| Model | AE-940D / AE-940D-WIFI |
|---|---|
| Heating systems | Electric, hydronic or boiler control |
| Sensor choices | Room, floor or room + floor |
| Display | Orange heating and white standby status |
| Timing | Single timed on/off and configurable screen behavior |
| Project confirmation | Heating type, output, sensor and WiFi requirement |
Documents and project notes
- Use the manual for the exact ordered configuration; check the supply label, output terminals and sensor selection together.
- Electric floor heating and hydronic floor heating should be confirmed before selecting the final configuration.
- For electric heating, confirm load/current and floor sensor requirement before sample order.
floor heating display and operation
- Color room, set and floor temperature display
- Orange heating and white standby indication
- Built-in, external or combined sensor selection
- Floor-temperature limit and low-temperature protection
- Optional Smart Life WiFi app and supported voice control
- Touch operation, child lock and timed on/off
Product overview
AE-940D product detail
AE-940D Floor Heating Smart Thermostat is positioned for electric or water floor heating control. It is suitable for distributors and project buyers who need smart heating schedules, sensor support and OEM options in one product line.
This model belongs to the Floor Heating Thermostat family. Confirm the exact HVAC model, wiring interface and required control configuration before requesting a quotation.
Application details
Where this model is used
- Electric floor heating thermostat projects
- Water or hydronic floor heating room control where applicable
- Residential heating, apartment renovation and smart home channels
- Private-label heating thermostat supply for distributors
Recommended inquiry details
To speed up quotation, include HVAC brand/model, protocol requirement, order quantity, target market, logo needs and certification requirements.
Open English manualFunction details
Three heating output configurations
Select AE-940D by the connected heating equipment, output requirement and sensor route.
16A electric heating
Direct control option for compatible electric floor-heating loads.
3A hydronic heating
Open/close valve output for water floor-heating systems.
Boiler dry contact
Potential-free switching version for a compatible wall-mounted boiler.
Smart Life WiFi
The optional WiFi model supports remote app control and compatible voice services.
Technical checklist
Key points to confirm before order
Exact configuration depends on project requirement, so ACMELEC confirms the real HVAC system before quotation and sample preparation.
- Confirm electric or water floor heating before selecting the model.
- For electric heating, confirm load/current and sensor requirements.
- For hydronic heating, confirm actuator or valve control method.
- Confirm target market certificate needs before bulk production.
Specification summary
Model information
| Model | AE-940D / AE-940D-WIFI |
|---|---|
| Product family | Floor Heating Thermostat |
| Heating systems | Electric, hydronic or boiler control |
| Power supply | 220±10 VAC in the manual; match the supply label and wiring diagram for the ordered hardware version |
| Output options | 16A electric / 3A water / dry contact |
| Setpoint range | 5-60°C |
| Accuracy | ±1°C |
| Sensor modes | Internal, external or combined |
| Smart option | Smart Life WiFi |
| Display | Tempered-glass color interface |
| Selection points | Heating type, output, sensor and WiFi requirement |
OEM/ODM options
- Logo printing and front panel appearance direction
- Packaging, label and English manual support
- Firmware or function configuration discussion by project
- Sample verification before bulk order
Verified product answers
AE-940D floor-heating questions
Which AE-940D output should be selected?
Choose 16 A for electric floor heating, 3 A for water-valve control or dry contact for a compatible boiler.
Can AE-940D limit floor temperature?
Yes. Connect the external floor sensor or use combined sensing, then configure the floor-temperature limit.
Is WiFi available on AE-940D?
Yes. AE-940D-WIFI supports Smart Life app control and compatible voice services.
Samples, MOQ and lead time
Purchasing information
- Pricing is quoted according to model, configuration and order quantity.
- Standard MOQ: 60 units/sets.
- Standard stock samples: approximately 3 working days.
- Functional or protocol-configured samples: approximately 15–20 working days.
- Logo, manual or packaging-adjusted samples: approximately 10 working days.
- Mass-production lead time is confirmed according to quantity and production schedule.
Logo, packaging and certification
- Free laser-engraved product logo when the standard MOQ is met.
- Orders below 500 units/sets use standard white corrugated packaging.
- Full-color logo packaging is available from 500 units/sets.
- CE, RoHS, applicable RED, FCC and relevant wireless-module documents are confirmed by model and target market.
AE-940D supply and timing questions
Which supply specification applies if the AE-940D manual and wiring photograph differ?
The page identifies different supply hardware versions: the manual lists 220±10 VAC, while illustrated wide-voltage hardware has a different rating. Confirm the actual ordered unit label, voltage and matching terminal diagram. Do not transfer the rating from a photograph to another hardware version.
Can I treat AE-940D single timed on/off as local weekly programming?
No. The local panel is described with a single timed on/off function. This does not establish a local weekly multi-period programme. The optional AE-940D-WIFI provides Smart Life app control; confirm the required app scheduling and firmware separately.
