AE-5509D Floor Heating Thermostat
Selection facts and manual scope
AE-5509D floor heating thermostat with room and floor sensing, 16A electric or 3A water heating configurations, color LCD and optional WiFi control.
Product selection summary
AE-5509D facts and document scope
| Product route | Floor heating thermostat; select 16 A electric-heating or 3 A water-heating configuration for the actual load or valve. |
|---|---|
| Sensing and timer | Room, floor or combined sensing; the local panel is described with a single on/off timer. |
| Enclosure and manual | AE-5509D: plastic enclosure. The corresponding AE-6609-D manual describes the 66-series aluminium-alloy enclosure. |
55/66-series manual scope · Configuration questions · English manual reference
Factory supply · B2B
Catalogues, samples & wholesale quotations
Standard MOQ: 60 units/sets
Models, protocols and software versions may be counted separately. Pricing and production lead time depend on the confirmed configuration and quantity.
Sample options
After requirements and payment are confirmed: stock samples approximately 3 working days; functional/protocol configuration 15–20 working days; logo, manual or packaging adjustments approximately 10 working days.
Confirm your application before ordering
Specify electric or water floor heating, load/current or valve specifications, supply voltage and room/floor sensor requirements. Outputs and functions depend on the ordered model.

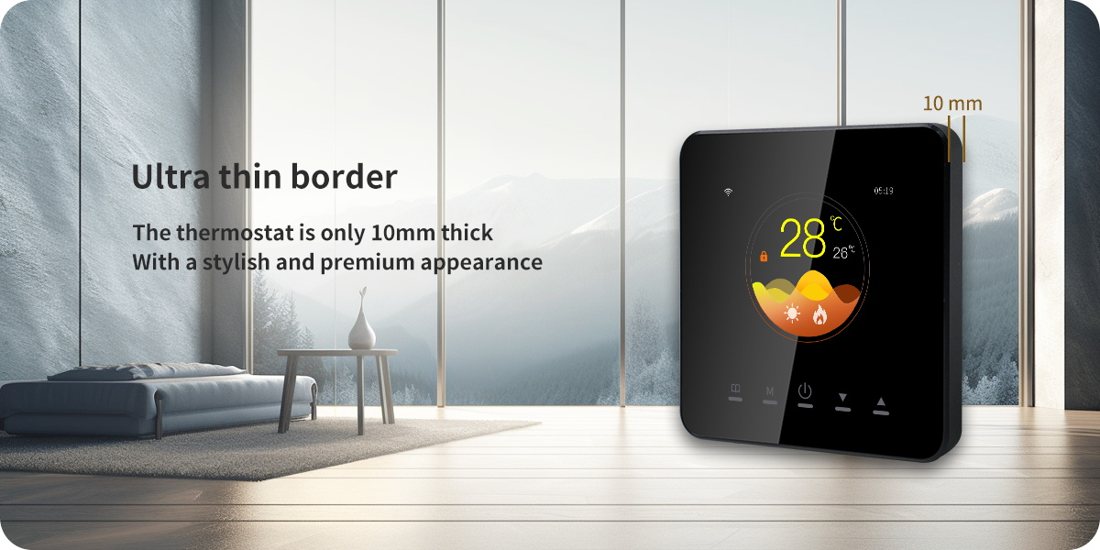

AE-5509D specifications

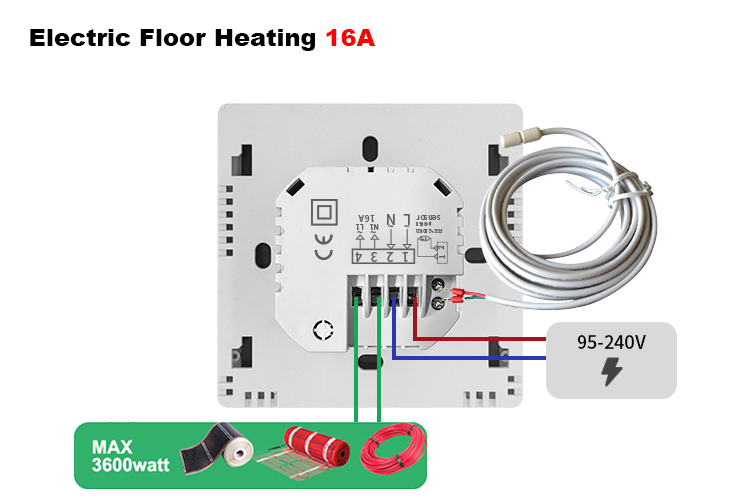

| Heating output | 16A electric heating or 3A water heating, according to ordered configuration |
|---|---|
| Power supply | 220 ±10% VAC; check the ordered unit label and wiring diagram |
| Setpoint range | 5–60°C, adjustable |
| Temperature accuracy | ±1°C |
| Sensor selection | Room sensor, external floor sensor, or combined sensing |
| Ambient temperature | 0–45°C |
| Mounting hole spacing | 60 mm |
| Panel | Color LCD, glass touch panel and plastic enclosure (55 series) |
Room comfort and floor protection
Choose room sensing, floor sensing or combined sensing to match the heating installation. Low-temperature protection, maximum floor-temperature warning and a child lock are available.
Timer and WiFi control

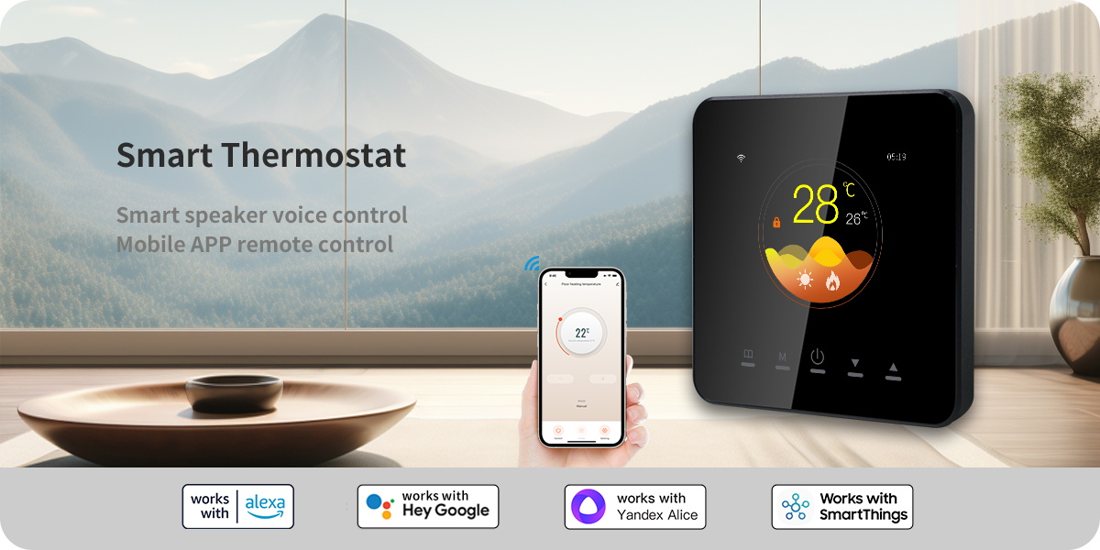

The panel supports a single on/off timer. The WiFi version adds Smart Life app control. Specify the WiFi version when requesting a quotation.
Select the correct heating output

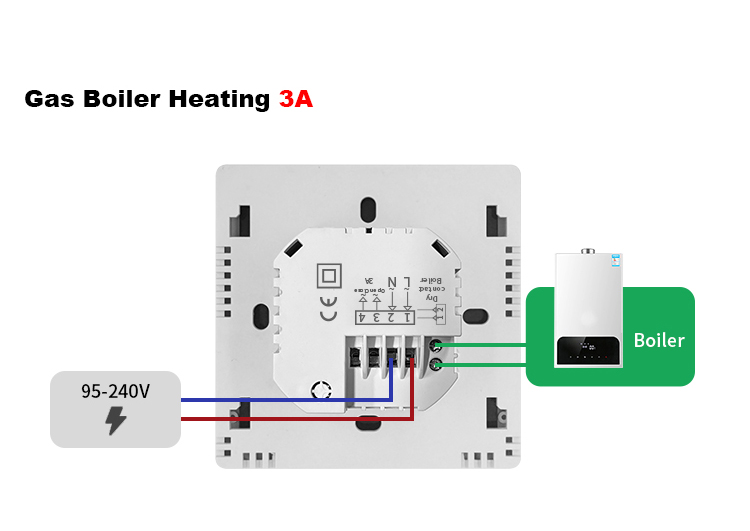

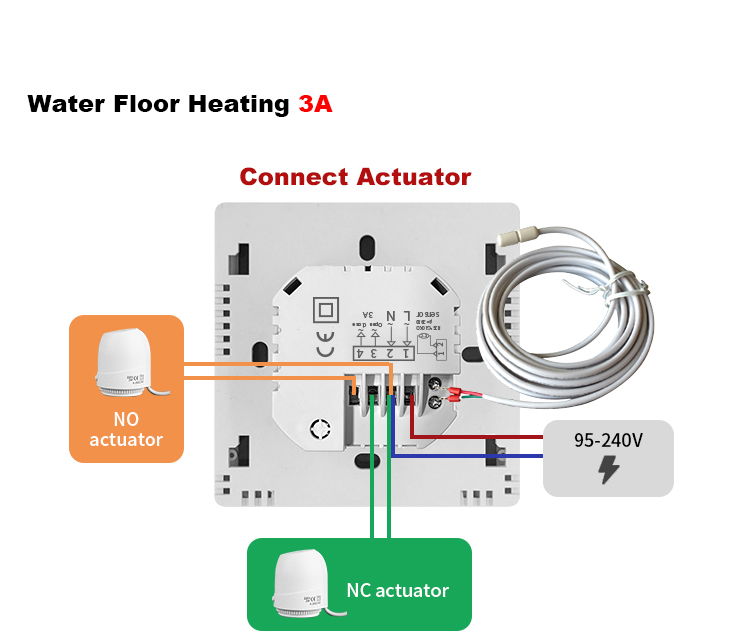

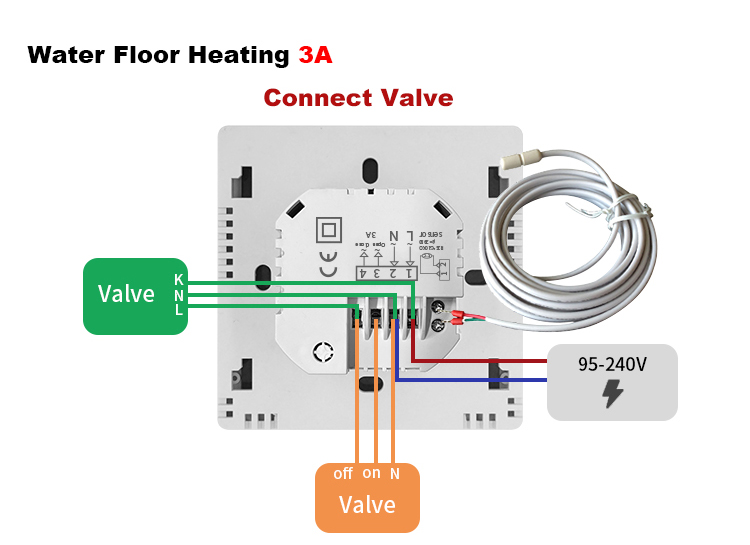

Electric floor heating, hydronic valve control and boiler dry-contact wiring use different configurations. Send the heating type, load or valve specification and required sensor arrangement before ordering.
Project enquiries from Uzbekistan
For distributor and installation enquiries, include quantities, heating type, power supply, required WiFi option and delivery city. ACMELEC can then confirm the model configuration and prepare an OEM quotation.
Technical references for procurement
The operating manual describes controls, sensor selection and wiring variants. Confirm the heating output, supply label and wiring diagram for the ordered configuration before installation.
English operating manual · Technical verification policy · Request configuration confirmation
Samples, MOQ and lead time
Purchasing information
- Pricing is quoted according to model, configuration and order quantity.
- Standard MOQ: 60 units/sets.
- Standard stock samples: approximately 3 working days.
- Functional or protocol-configured samples: approximately 15–20 working days.
- Logo, manual or packaging-adjusted samples: approximately 10 working days.
- Mass-production lead time is confirmed according to quantity and production schedule.
Logo, packaging and certification
- Free laser-engraved product logo when the standard MOQ is met.
- Orders below 500 units/sets use standard white corrugated packaging.
- Full-color logo packaging is available from 500 units/sets.
- CE, RoHS, applicable RED, FCC and relevant wireless-module documents are confirmed by model and target market.
Project planning
AE-5509D and AE-6609-D manual scope
Manual cover: AE-6609-D. The corresponding 55 and 66 series share functions, electrical specifications and wiring. The 55 series has a plastic enclosure; the 66 series has an aluminium-alloy enclosure. Enclosure material in this manual applies to the 66 series.
Configuration answers
AE-5509D enclosure and configuration questions
Which enclosure specification applies to AE-5509D?
AE-5509D belongs to the 55 series and uses a plastic enclosure. The linked manual cover names AE-6609-D, whose aluminium-alloy enclosure belongs to the 66 series. The corresponding series share functions, electrical specifications and wiring as clarified on this page.
Are the AE-5509D 16 A and 3 A outputs interchangeable?
They are different ordered heating configurations: 16 A for electric heating or 3 A for water heating. Confirm the heating load or valve specification, supply label, sensor arrangement and matching terminal diagram. Do not infer a boiler dry-contact output from either current rating.
Does the AE-5509D local timer provide a weekly programme?
The page describes a single on/off timer on the local panel. It does not establish local weekly programming. The optional WiFi version adds Smart Life app control; confirm the required scheduling behaviour for the ordered firmware and app version.
