Floor Heating Thermostat

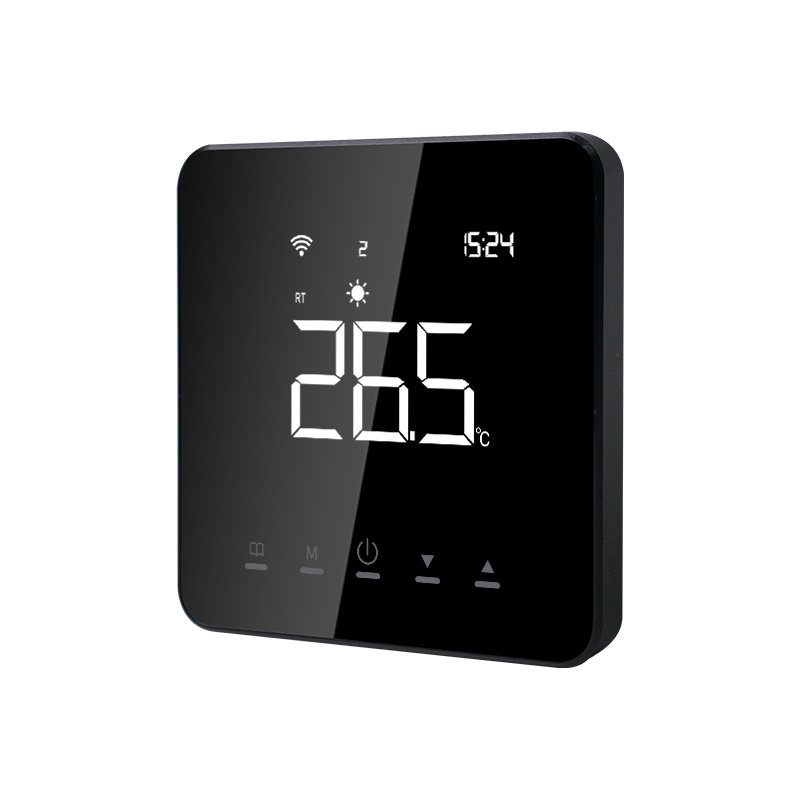

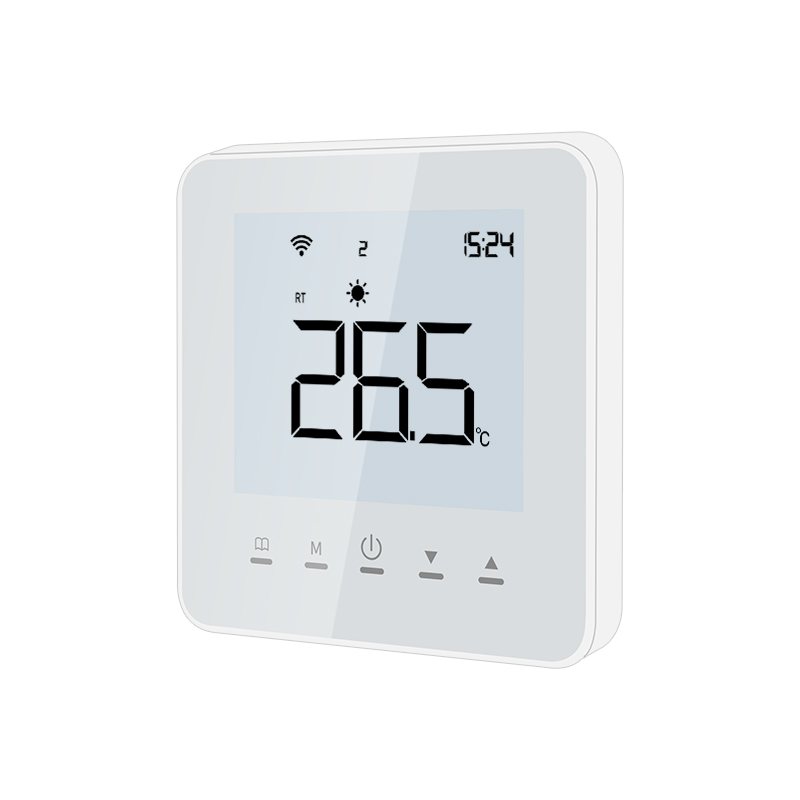

AE-5503D Floor Heating Smart Thermostat
Specifications & document scope · Heating selection questions
AE-5503D Floor Heating Smart Thermostat for electric and hydronic floor heating, with OEM/ODM support, smart control options and factory-direct supply from ACMELEC.
- Model
- AE-5503D
- Application
- Electric and hydronic floor heating
- Protocols
- WiFi, Zigbee, NTC
- Compatible brand
- ACMELEC
- Product family
- Floor Heating Thermostat
These diagrams show separate output configurations, not interchangeable terminals on one unit. Match the supplied terminal label, voltage and load rating before installation. The illustrated wide-voltage hardware and the 220 ±10 VAC manual version have different ratings; use the specification supplied with your ordered version.
Factory supply · B2B
Catalogues, samples & wholesale quotations
Standard MOQ: 60 units/sets
Models, protocols and software versions may be counted separately. Pricing and production lead time depend on the confirmed configuration and quantity.
Sample options
After requirements and payment are confirmed: stock samples approximately 3 working days; functional/protocol configuration 15–20 working days; logo, manual or packaging adjustments approximately 10 working days.
Confirm your application before ordering
Specify electric or water floor heating, load/current or valve specifications, supply voltage and room/floor sensor requirements. Outputs and functions depend on the ordered model.
Specifications and document scope
AE-5503D heating configuration and manual reference
Supply reference: the manual parameter table and wiring illustrations show different supply ranges. Follow the ordered product label and the matching wiring diagram rather than inferring the supply from a shared illustration.
Select the heating output, room/floor sensor arrangement and smart-control version for the actual installation. Confirm the product label and model-matched wiring before using a document for installation.
Product parameters
| Temperature sensing element | NTC / thermistor sensor |
|---|---|
| Control accuracy | ±1°C |
| Heating application | Electric floor heating or hydronic floor heating by configuration |
| Sensor route | Built-in sensor and external floor sensor route by selected model |
| Load / valve output | Confirm electric load or water-heating valve output before order |
| Smart options | WiFi, Zigbee, Tuya, Modbus, RF433 or wired route by project configuration |
| OEM/ODM scope | Logo, panel, packaging, firmware and manual language support |
| Manual electric-heating reference | 16 A configuration; confirm the installed load and ordered output |
| Manual water-heating reference | 3 A configuration; match the actuator and wiring |
| Manual sensor choices | Internal, external, or internal plus external |
| Manual programming reference | Four working-day periods and two off-day periods; confirm firmware and schedule |
Model and selection information
| Shared model | AE-5503D |
|---|---|
| Product form | Wall-mounted floor heating smart thermostat |
| Main use | Electric or hydronic floor heating room control |
| System check | Confirm heating type, sensor route, load/current or valve output |
| Protocol route | WiFi, Zigbee, NTC |
| Project confirmation | Voltage, load, sensor, wiring and target market |
Documents and project notes
AE-5503D Floor Heating English manualAE-5503-D / AE-5503-D-WIFI manual — check ordered configuration
- Check the ordered output and firmware against the document version rather than selecting by front-panel appearance alone.
- Electric floor heating and hydronic floor heating should be confirmed before selecting the final configuration.
- For electric heating, confirm load/current and floor sensor requirement before sample order.
floor heating display and operation
- Room temperature and set temperature display
- Weekly programming or schedule control where supported
- Floor sensor / room sensor route according to selected model
- Heating output, child lock and anti-freeze function route by configuration
- WiFi, Zigbee, Tuya, Modbus or RF433 option according to project need
- Touch keys for mode, timing, up, down and ON/OFF operation
Product overview
AE-5503D product detail
AE-5503D Floor Heating Smart Thermostat is positioned for electric or water floor heating control. It is suitable for distributors and project buyers who need smart heating schedules, sensor support and OEM options in one product line.
This model belongs to the Floor Heating Thermostat family. Confirm the exact HVAC model, wiring interface and required control configuration before requesting a quotation.
Application details
Where this model is used
- Electric floor heating thermostat projects
- Water or hydronic floor heating room control where applicable
- Residential heating, apartment renovation and smart home channels
- Private-label heating thermostat supply for distributors
Recommended inquiry details
To speed up quotation, include HVAC brand/model, protocol requirement, order quantity, target market, logo needs and certification requirements.
Open English manualFunction details
Control functions and buyer value
Confirm which control functions are included in the ordered configuration. Do not assume that every protocol or feature is available on every version.
Function 1
Heating schedule and room temperature control by selected configuration
Function 2
Confirm the required WiFi or Zigbee configuration and NTC sensor specification before ordering
Function 3
Sensor and load configuration to be confirmed before order
Function 4
OEM logo, packaging and manual language support
Technical checklist
Key points to confirm before order
Exact configuration depends on project requirement, so ACMELEC confirms the real HVAC system before quotation and sample preparation.
- Confirm electric or water floor heating before selecting the model.
- For electric heating, confirm load/current and sensor requirements.
- For hydronic heating, confirm actuator or valve control method.
- Confirm target market certificate needs before bulk production.
Specification summary
Model information
| Model | AE-5503D |
|---|---|
| Product family | Floor Heating Thermostat |
| Application | Electric and hydronic floor heating |
| Protocol / function options | WiFi, Zigbee, NTC |
| Compatible system | ACMELEC |
| OEM/ODM | Logo, panel, firmware, packaging and manual support available by project |
| Documents | English manual or technical file can be supplied when available |
| Buyer type | HVAC distributors, brand owners, system integrators and project buyers |
| Heating system | Electric or hydronic floor heating |
| Control focus | Room heating schedule and temperature control |
| Function options | WiFi, Zigbee, NTC |
| Common projects | Residential heating, smart home channels and apartments |
| Selection points | Heating type, sensor, load/valve, voltage and market certification |
OEM/ODM options
- Logo printing and front panel appearance direction
- Packaging, label and English manual support
- Firmware or function configuration discussion by project
- Sample verification before bulk order
Product FAQ
AE-5503D heating selection questions
Which AE-5503D output should I select for electric or water floor heating?
The linked manual lists a 16 A electric-heating configuration and a 3 A water-heating configuration, with separate wiring examples. Confirm the heating load or actuator requirements and use the rear-terminal diagram supplied for the ordered version.
Can AE-5503D use both room and floor temperature sensing?
The manual lists internal, external, and combined internal-plus-external sensor selection. It also includes a floor-temperature warning setting. Confirm the sensor supplied and configure the limit for the installation and floor finish.
What programming does the AE-5503D manual describe?
The manual describes manual and automatic operation, with four working-day periods and two off-day periods in its programming table. Check the supplied firmware and required day schedule before ordering; the listed temperatures are example defaults, not a recommendation for every floor.
Explore the range
Related products
Floor Heating Thermostat
AE-5501D Floor Heating Smart Thermostat
AE-5501D Floor Heating Smart Thermostat for electric and hydronic floor heating, with OEM/ODM support, smart control options and factory-direct supply from ACMELEC.
- Model
- AE-5501D
- Protocol
- WiFi, Zigbee, NTC
Floor Heating Thermostat
AE-5507D Floor Heating Smart Thermostat
AE-5507D Floor Heating Smart Thermostat for electric and hydronic floor heating, with OEM/ODM support, smart control options and factory-direct supply from ACMELEC.
- Model
- AE-5507D
- Protocol
- WiFi, Zigbee, NTC
Floor Heating Thermostat
AE-5509D Floor Heating Smart Thermostat
AE-5509D Floor Heating Smart Thermostat for electric and hydronic floor heating, with OEM/ODM support, smart control options and factory-direct supply from ACMELEC.
- Model
- AE-5509D
- Protocol
- WiFi, Zigbee, NTC
Samples, MOQ and lead time
Purchasing information
- Pricing is quoted according to model, configuration and order quantity.
- Standard MOQ: 60 units/sets.
- Standard stock samples: approximately 3 working days.
- Functional or protocol-configured samples: approximately 15–20 working days.
- Logo, manual or packaging-adjusted samples: approximately 10 working days.
- Mass-production lead time is confirmed according to quantity and production schedule.
Logo, packaging and certification
- Free laser-engraved product logo when the standard MOQ is met.
- Orders below 500 units/sets use standard white corrugated packaging.
- Full-color logo packaging is available from 500 units/sets.
- CE, RoHS, applicable RED, FCC and relevant wireless-module documents are confirmed by model and target market.
Need the AE-5503D Matter edition?
The linked WiFi manual is not a specification for every Matter firmware version. Compare the hydronic Matter thermostat, electric floor heating Matter thermostat and boiler Matter thermostat, then confirm the ordered output and available ecosystem controls.
